Dry-Type Transformers

Dry-Type Transformers

Cast Resin Technology — Up to 66kV / 30 MVA — IEC60076 / CSA / CE

Product Overview

Novertronics XFO distributes cast resin dry-type transformers manufactured by Pearl Electric Co., Ltd. — a certified manufacturer since 1958 with 600+ employees and 200,000+ units operating in 70+ countries. All transformers comply with IEC 60076-11, CSA, ANSI, CE and KEMA standards.

Featured Products

800kVA Cast Resin Transformer

800 kVA Cast Resin Dry Type

Three-phase epoxy resin encapsulated. 35/0.8kV, AN/AF cooling, Dyn11, Class H insulation.

Request Quote

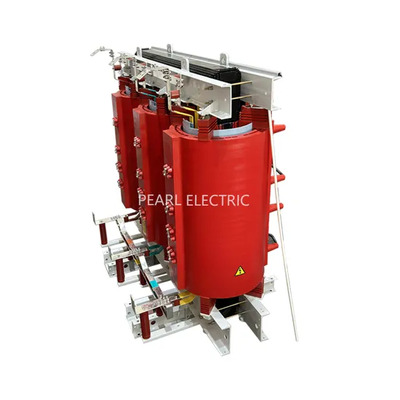

Cast Resin Transformer Side View

1000–3000 kVA Distribution

Three-phase cast resin distribution transformer. Up to 35kV, IP00 to IP56 enclosure options.

Request Quote

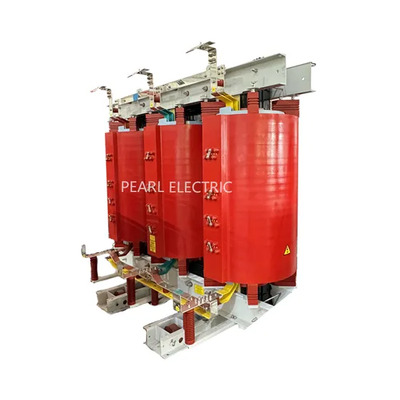

Cast Resin Transformer Detail

1500–3500 kVA Step Up/Down

High-reliable cast resin with protective enclosure. Copper or aluminum winding, Class F or H.

Request Quote

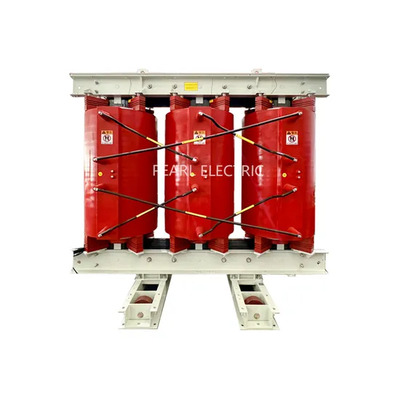

Cast Resin Transformer Assembly

Water-Cooled Dry Type (AFWF)

High efficiency water-cooled transformer for data centers and industrial applications. CE/UL listed.

Request Quote

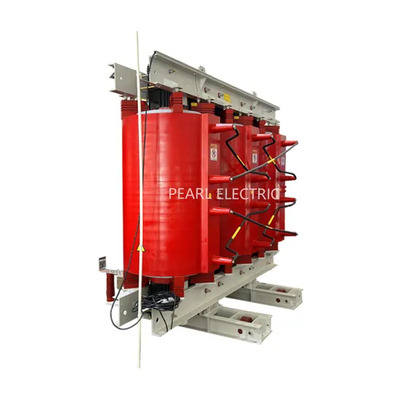

Cast Resin Transformer Coil

Marine Dry Type Transformer

Voltage-stabilizing marine transformer for offshore and vessel applications. Energy-saving design.

Request Quote

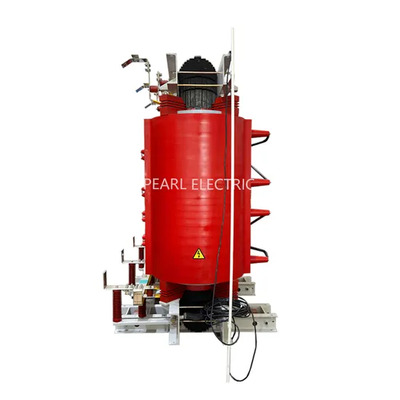

Cast Resin Transformer Nameplate

5500 kVA 34.5kV Heavy Duty

Large capacity cast resin transformer with fireproof enclosure for industrial substations.

Request Quote

Technical Specifications

Parameter Specification
Voltage Level Up to 66 kV
Rating 100 kVA to 30 MVA
Frequency 50 / 60 Hz
Cooling Method AN / AF / ANAF / AFWF
Insulation Class Class F / Class H
Winding Material Aluminum or Copper
Enclosure IP00 to IP56
Standards IEC 60076-11 / CSA / ANSI / CE / KEMA
Impedance 4% to 6%
Tapping Range +2×2.5% / -2×2.5%

Need a Custom Specification?

Send us your voltage, capacity and installation requirements. We respond within 24 hours.

Request a Quote
